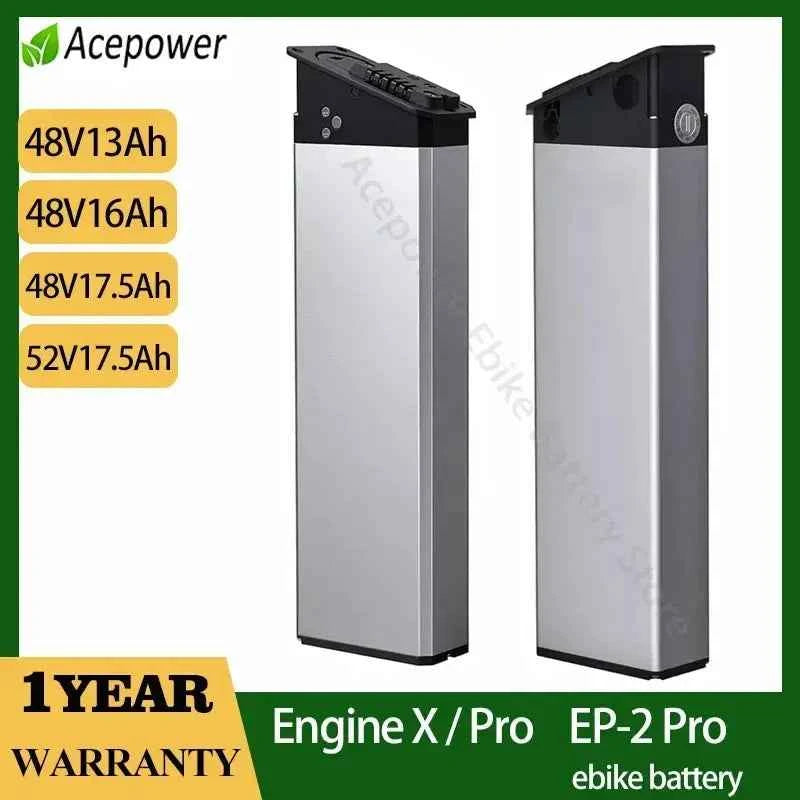

Battery for Engwe EP-2 Pro Engine X Engine Pro Foldable E-bike Battery 48V 17.5Ah 16Ah 13Ah Replacement Battery
Battery for Engwe EP-2 Pro Engine X Engine Pro Foldable E-bike Battery 48V 17.5Ah 16Ah 13Ah Replacement Battery - 48V 17.5Ah / GERMANY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specs
Specs
Size
Size
What's in the Box?
What's in the Box?
Fit for: Engwe Engine Pro (16Ah Version) and Ep-2 Pro（13Ah Version), Engwe Engine X
Mate X bike, CMACEWHEEL RX20, Bezior XF200/ X Plus etc...
Note for Engwe Engine Pro/Engwe ep-2/ep-2 pro/ BEZIOR XF200 ebike:
Old version ebike used with DCH-006(43x103x430mm) thinner battery;

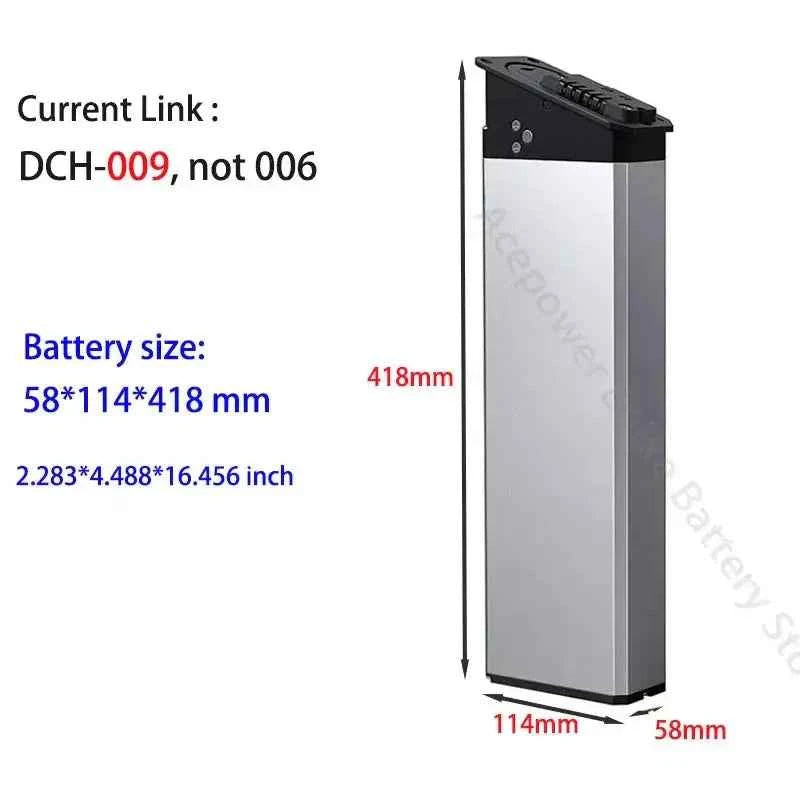

New version ebike used with DCH-009(58x114x418mm) fatter battery.
Current link item is 009. If you can't sure what version of your ebike and can't sure which battery to choose, Send us your old battery photos, we'll check for you.
!!!Attention:
Current link is item DCH-009，not DCH-006, they are similar models, but not the same model, they have different sizes, please be sure to pay attention to the size when ordering to avoid wrong orders！
Frequently Asked Questions:
Q: My original battery is 48V13Ah or 48V16Ah. Can I order 48V17.5Ah?
A: Yes, Ah is just the capacity unit of the battery, which determines the cycling range of the bicycle.
The larger Ah, the farther the riding distance, and it has no other impact on the bicycle. You can order with confidence.
Q: My old battery size is different from the linked product size. It is smaller. Can I use this larger size battery to increase capacity?
A: No, the appearance and size of the battery must be consistent, otherwise it will not be able to be installed into your bike rack

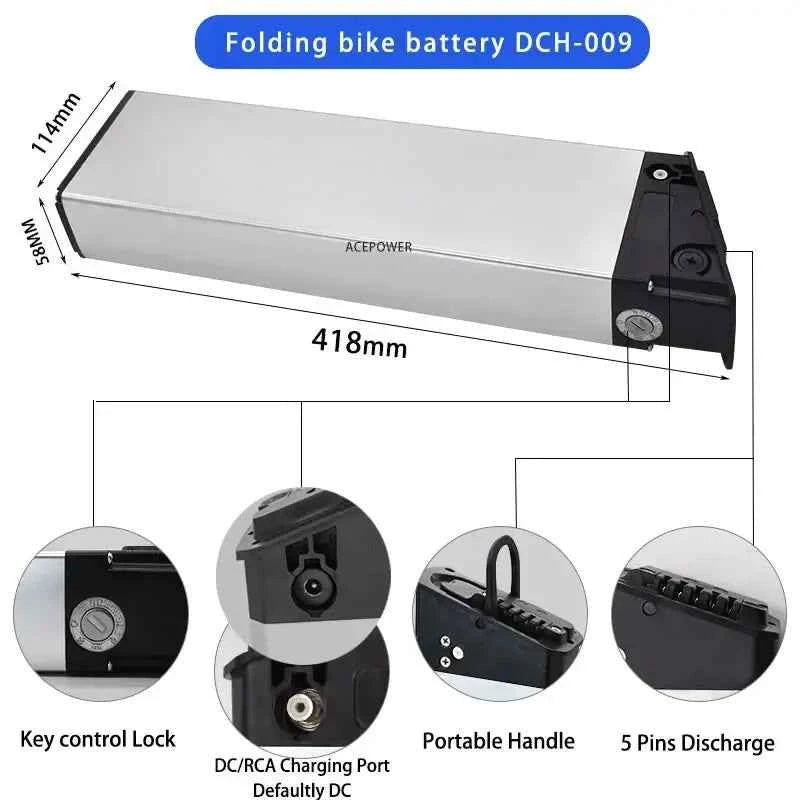

Important Notice for DCH-009's lock design:
Function 1. Lock the battery inside the bike frame. (with function 1 )
Function 2. The lock is also the battery's power (on/off) switch. (with function 2 also)
Defaultly, we will make battery with both function 1 and function 2,
so: before charging and riding, please turn the battery key to the end to turn on the battery's switch.
If you don't need function 2, please leave order note when place order.
Battery Specification:
|
Battery Parameter |
48V 10.4Ah |
48V 13Ah |
48V 15Ah |
48V 16Ah |
48V 17Ah |
48V 17.5Ah |
52V 17.5Ah |
|
Cells |
Brand |
Brand |
Brand |
Brand |
Panasoni/c |
L G/Sam-sung/Panasoni/c |
L G/Sam-sung/Panasoni/c3500mAh |
|
Composed Type |
13S 4P |
13S 5P |
14S 5P |
||||
|
Battery Weight(appr.) |
3.3kg |
4kg |
4.25kg |
||||
|
Charging |
54.6V |
54.6V |
58.8V |
||||
|
Discharge |
39V |
39V |
42V |
||||
|
Fit for Motors |
48V 0-750W |
48V 0-1000W |
48V/52V |
||||
|
Charger |
2A |
3A faster charger |
3A faster charger |
||||
|
Charging Time |
5-6h |
4-5h |
5-6h |
5-6h |
5.5-6.5h |
6-7h |
6-7h |
General Parameters:
|
BMS |
30A Smart BMS |
|
Battery Size(appr.) |
58*114*418mm |
|
Discharge Temperature |
-20~65°C |
|
Charging Temperature |
0~45°C |
|
Cycle Life |
80% Capacity after 800 cycles |
|
Warranty |
1 Year |

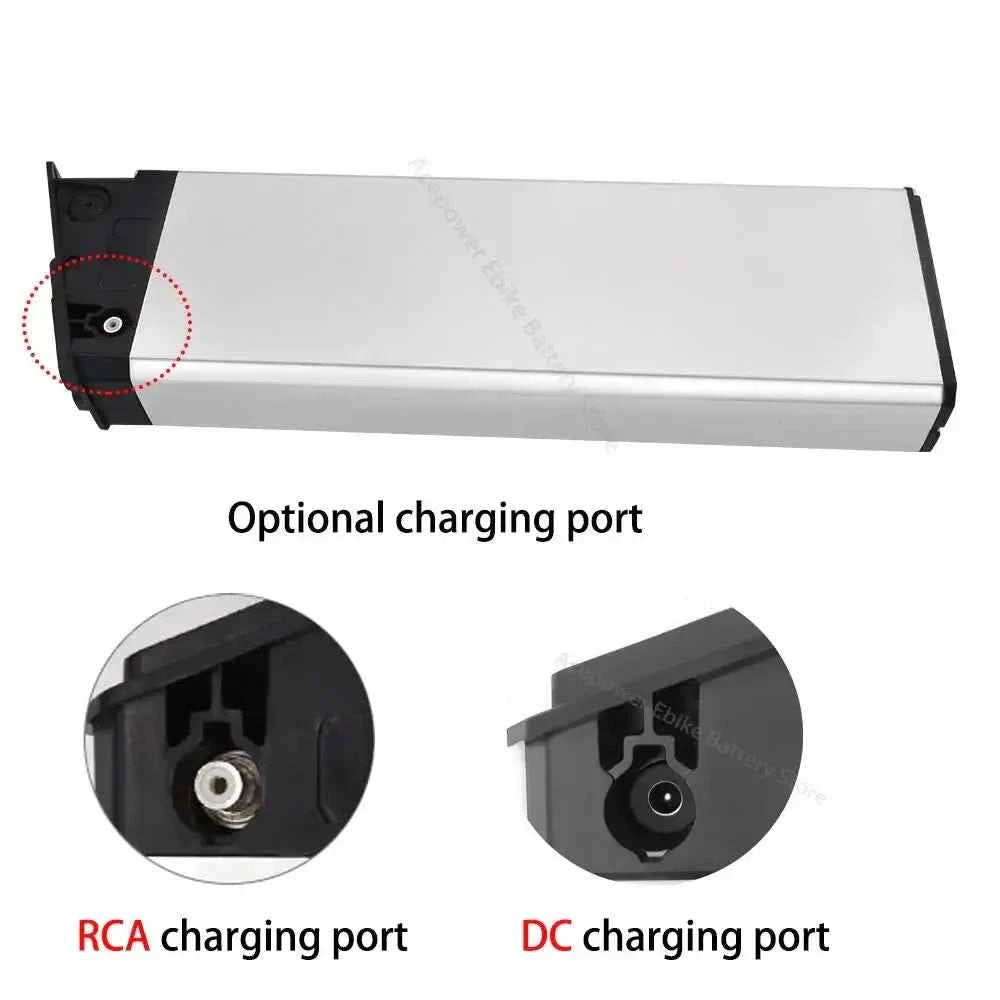

Charger and Discharge Connectors:
Shipping Time and CoustomsTax:
The estimated time of delivery displayed on the AliExpress page is the time of ordinary goods,
Because battery is a special product, if ship from China, all batteries need to be sent by battery special channel, its transportation and customs clearance procedures are more complicated than regular goods, so you may not be able to track your package information online through orders, and its shipping time will also be longer than ordinary goods
Please kindly don't worry and help to wait more days if you can't track it, thanks
Shipping time for refer
EU warehouse To EU countries (Free Tax):
Europe local delivery. Shipping time is about 3-10 days.
USA/CA warehouse To USA/CA (Free Tax):
USA/CA local delivery. Shipping time is about 3-10 days.
China To USA/CA (Free Tax):
Shipping by special line first to USA + Fedex/UPS Last delivery. Shipping time is usually 12-25 days.
UK/ warehouse To UK (Free Tax):
UK local delivery. Shipping time is about 2-7 days
Warranty
|
Product: Battery |
|
12 MonthsQuality warranty 1. We provide 1 year warranty for all electric bike batteries. |
|
Condition The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time. Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion. |
Tips
|
1. The payment does not include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order. 2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address. |
|
|
|
1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland) 2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules. 3. Japanese customers need to provide Japanese address and contact information |
|
Your satisfaction and positive feedback is very important for us. It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services. If you have any problems, don't hesitate to contact us, we will do our best to serve with you. |
